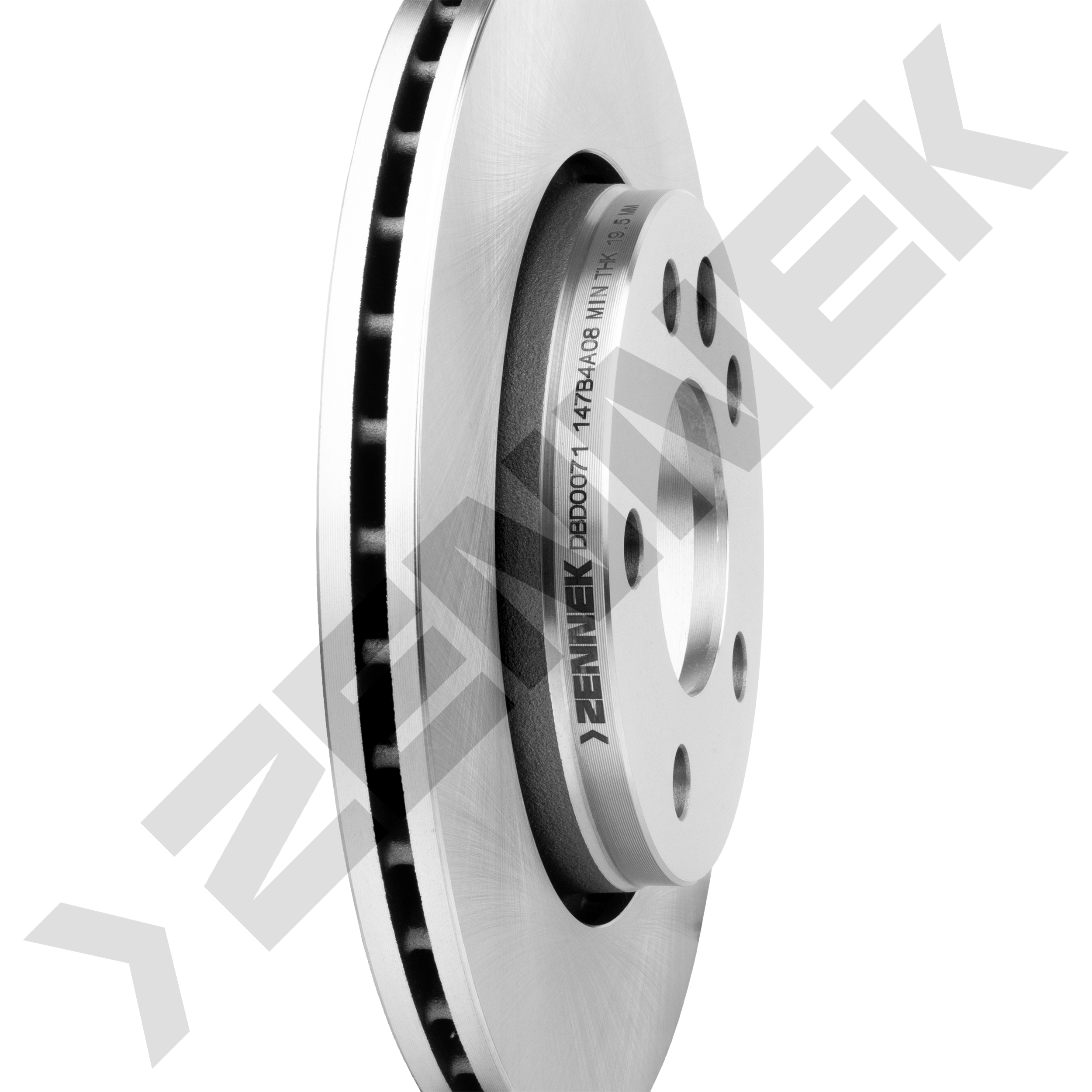

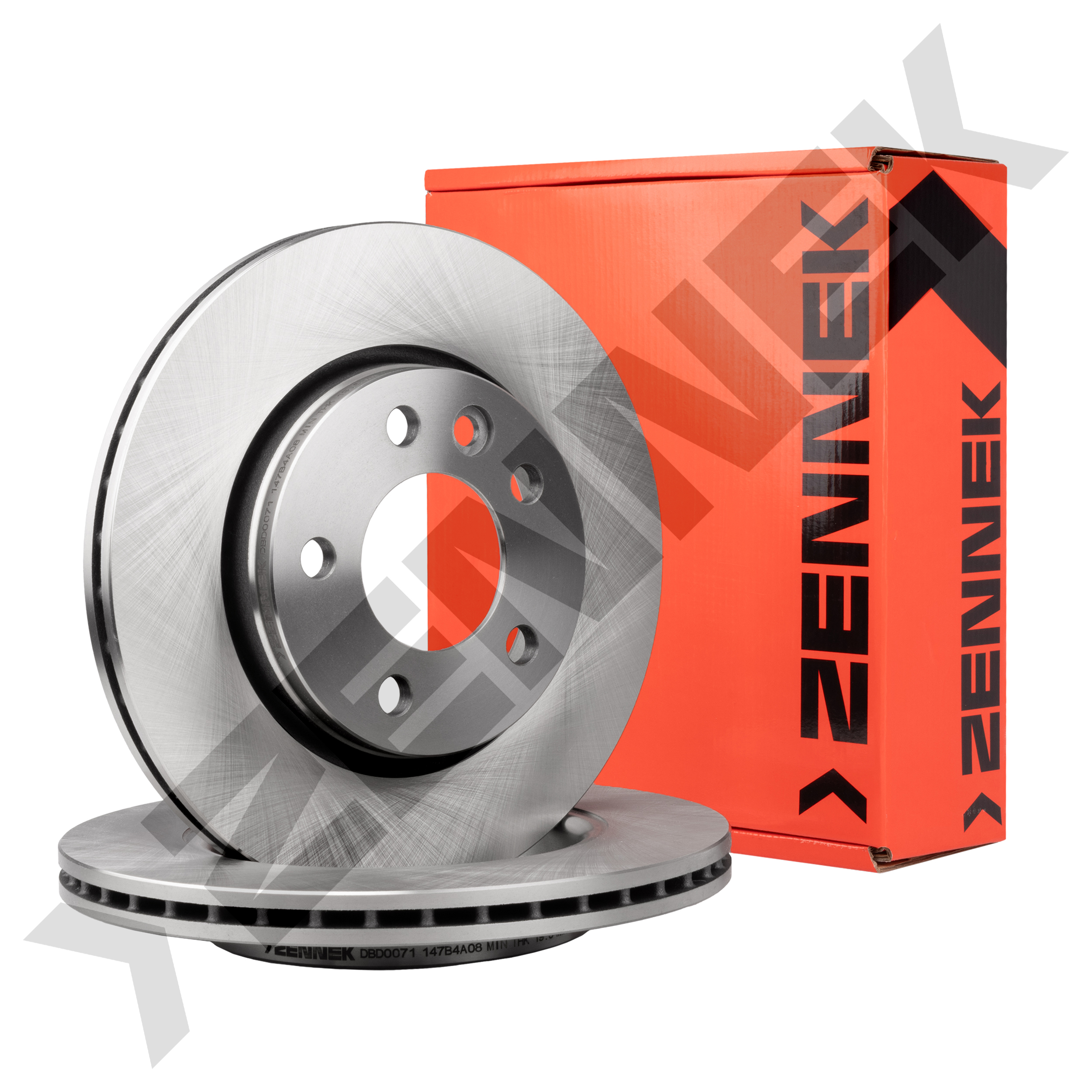

Rear brake disk VW T5 03-15

ARTICLE: DBD0071

PSA: 1687780680
VAG: 7E0615601B 7E0615601D 7H0615601B JZW698601AK JZW698601AL
VOLKSWAGEN:
    TRANSPORTER T5 Box (7HA, 7HH, 7EA, 7EH)
    TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)
    TRANSPORTER T5 Multivan (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)
    TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F, TRANSPORTER T6 Box (SGA, SGH)
    TRANSPORTER T6 Bus (SGB, SGG, SGJ)
    TRANSPORTER T6 Multivan (SGF, SGM, SGN)
    TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ)

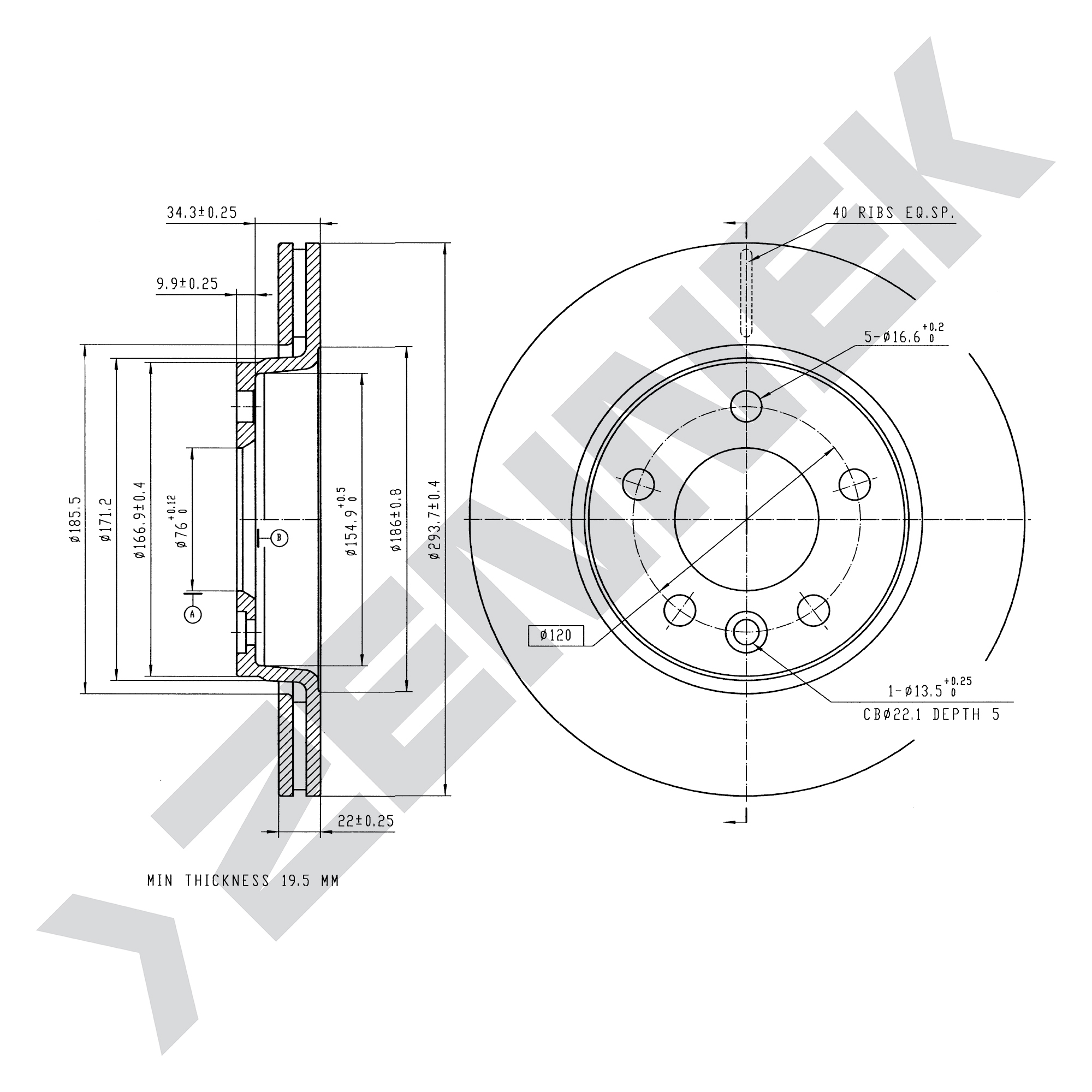

Specifications

Disk type:

Ventilated


Thickness, mm:

22


Minimum thickness, mm:

19.5


Outer diameter, mm:

293.7


Number of openings:

5+1


Centering diameter, mm:

76


Height, mm:

44.2


Color:

Uncolored


Installation axis:

Rear
